Building off a decade of EV fast charging experience, ABB’s Terra 184 joins the Terra family of bestselling DC fast charging stations for enhanced usability and reliability.

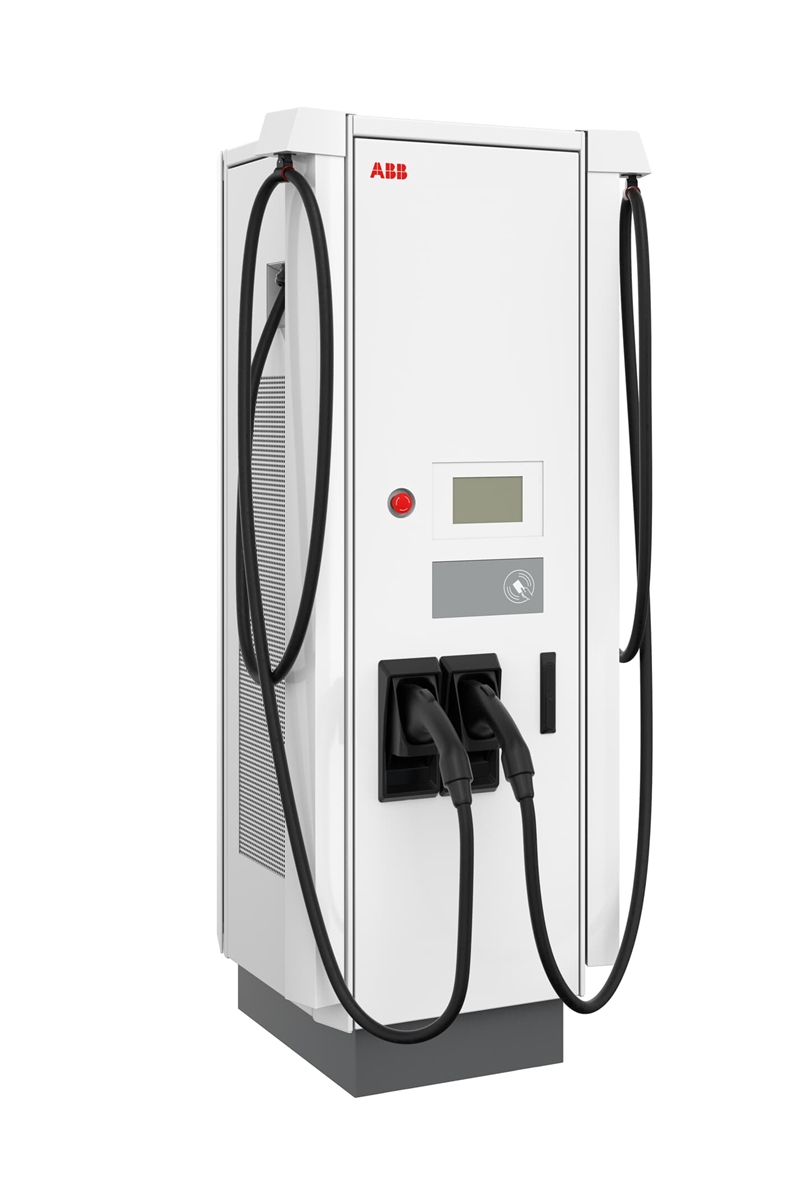

ABB The Terra 184 is a 180 kW DC fast charger rated up to 920 VDC 20 foot charging cable(s). ABB’s 4G modem-connected chargers feature a redundant power module architecture for high uptime and remote serviceability – with a 7" high-brightness color touchscreen display, RFID, support for OCPP 1.6 integrations, and a 2 year warranty. Features 2x 200A CCS1 charging cables in dual outlet configuration, and can charge 2 cars simultaneously up to 90 kW each
- Technical Specs:
- 2x 200A CCS1 charging cables
- Can charge 2 cars simultaneously up to 60 kW each (or one vehicle at 120 kW)
- Terra 124 and Terra 184 can fast-charge two vehicles at the same time
- Paralleled power module topology with automatic failover offers high uptime through redundancy.
- Delivers output power continuously and reliably over its lifetime

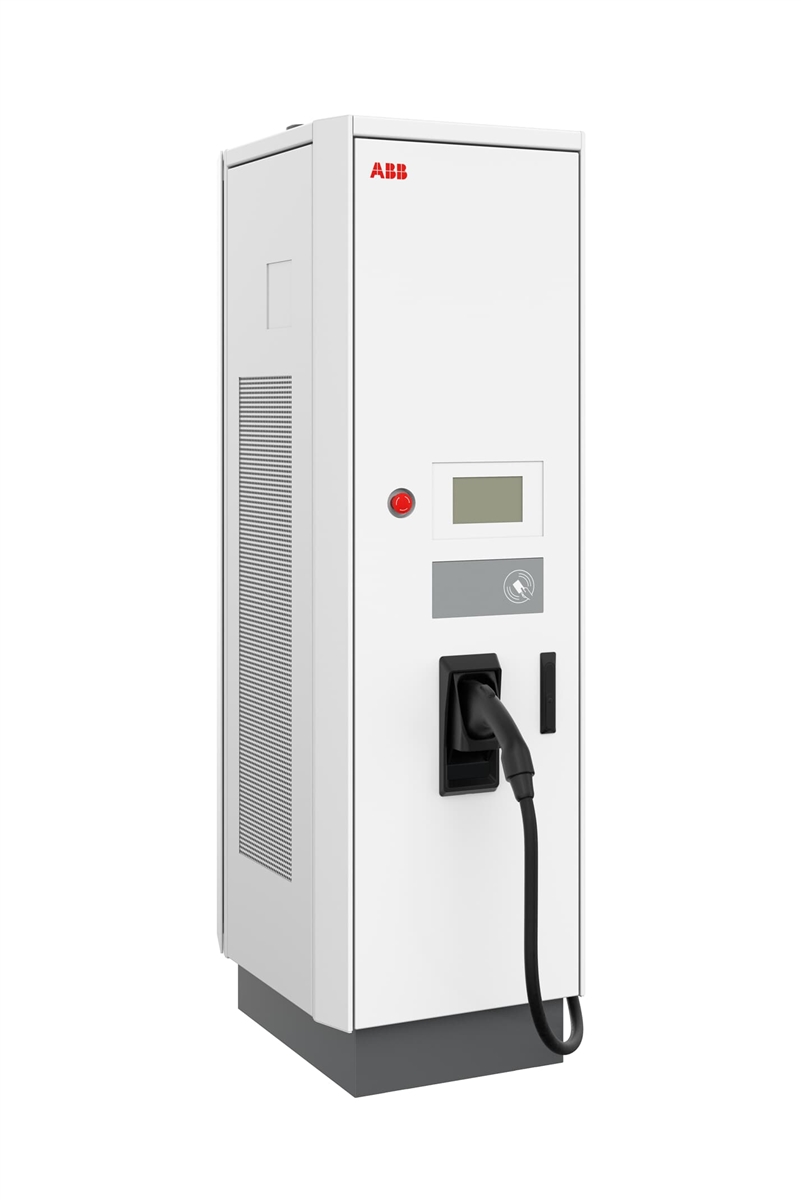

- Flexible dual configurations include CCS-single, CCSdual and CCS+CHAdeMO-dual outlets
- Up to 920 VDC for every passenger or fleet EV.
- Bright, 7" touchscreen display.
- Design enables ADA compliant installations.
- All-weather powder-coated stainless steel frame.
- Certified for safe use at fuel stations, retail centers, offices, and residential-adjacent sites.
- Quick and easy installation as well as serviceability.
For full details, please refer to the datasheet.
|
|
|
 |
|
 |
|
