The PowerCharge™ FlexPower Level 1 & 2 Charging Station is a dual voltage (120V & 240V) charging station designed to charge all types of electric vehicles.
Easy to Use. Plug-and-Play.
• Simple Plug-and-Play Solution foregoes the need to download apps, manage notifications, or push extra buttons.
• Slim, lightweight, and compact design allows you to take it with you for fast on-the-go charging or hang on wall with included bracket

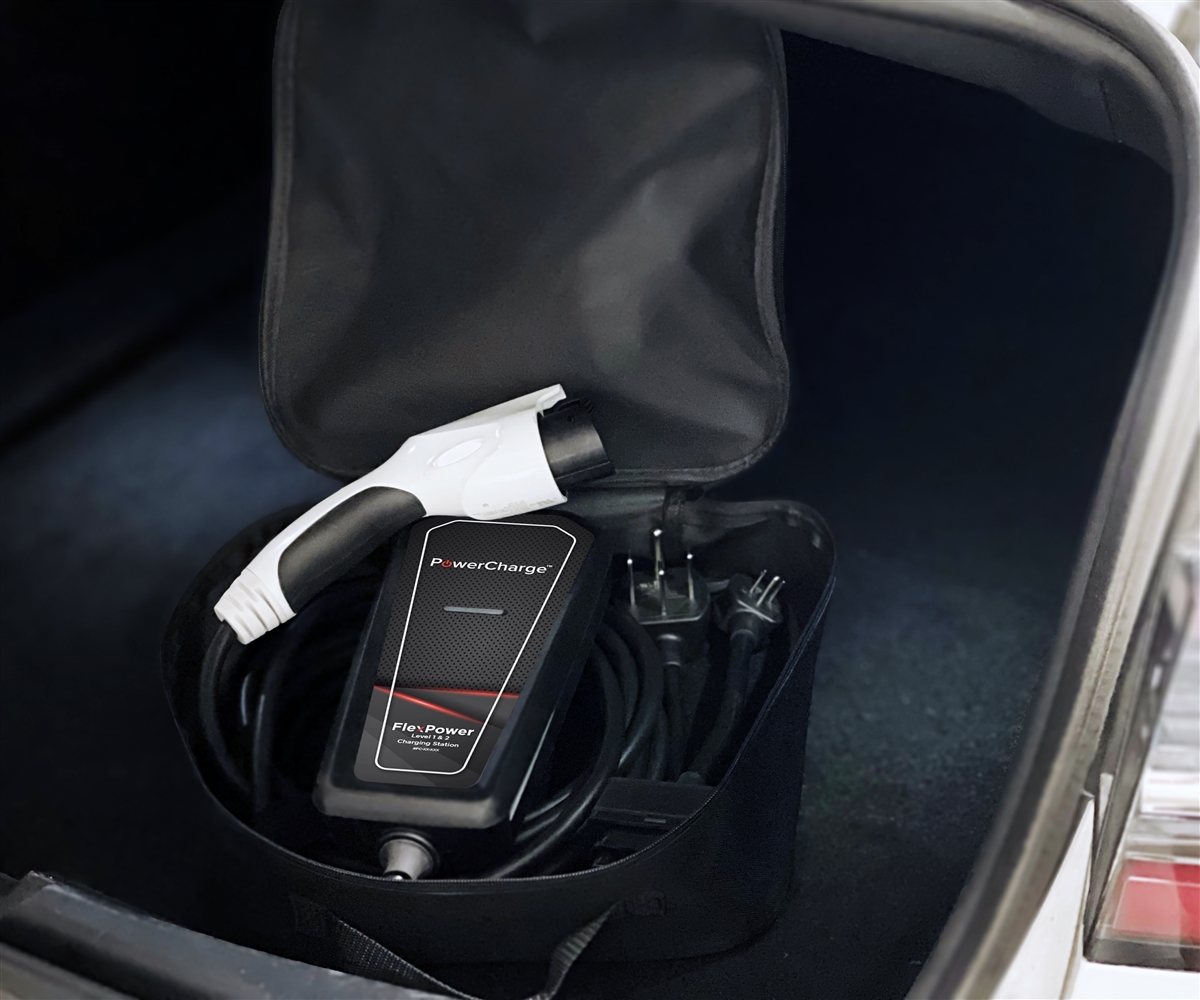

• Travel case included
Safe & Reliable
• NEMA 6P Watertight rating protects this charger if submerged in up to 3 ft. of water
• Safetly charge indoors or outdoors, no matter the weather conditions
• Easily mount in your garage with included bracket
• UL and cUL Certified
Quick Access
• Quickly access high power charging at up to 7.7kW, faster than a standard Level 1 charging station
• Add up to 30 miles range per hour charged, depending on your vehicle’s efficiency
Intelligent Grid Plug
• Included adapters (120V & 240V) allows you to choose the right power for your charging application
• Swappable grid plug enables low and high power charging
• Designed with thermal detection, auto-restart and recovery, and ground detection against defaults
• Smart Plug Technology automatically determines and sets the correct power level according to global technical and legal requirements
- Max Current: 240V @ 32A (7.7kW); 120V @ 12A (1.4kW)
System Package: 12.6 in x 12.6 in x 3.94 in (320 x 320 x 100 mm)
AC Compatibility: 85 - 265 VAC, 45 - 65 Hz
Plug Type: NEMA 14-50 and IEC types
Cable Length: 20 ft. (6 m)
Weight: 9 lbs (4.1 kg) - module
Operating Temperature: -40C (-40°F) to +75C (167°F)
Indoor / Outdoor: Yes | NEMA 6P watertight, IP67 (up to 3ft submerged)
Certified Altitude: 13,123 ft (4000m)
Vehicle Connector: SAE, IEC
Certification: UL, cUL
HMI: 3 LED status bar
Warranty: Limited 2-Year
Click here to view the PowerCharge™ FlexPower™ datasheet. Click here to view the PowerCharge™ FlexPower User Guide.
|
|
|
 |
|
 |
|
