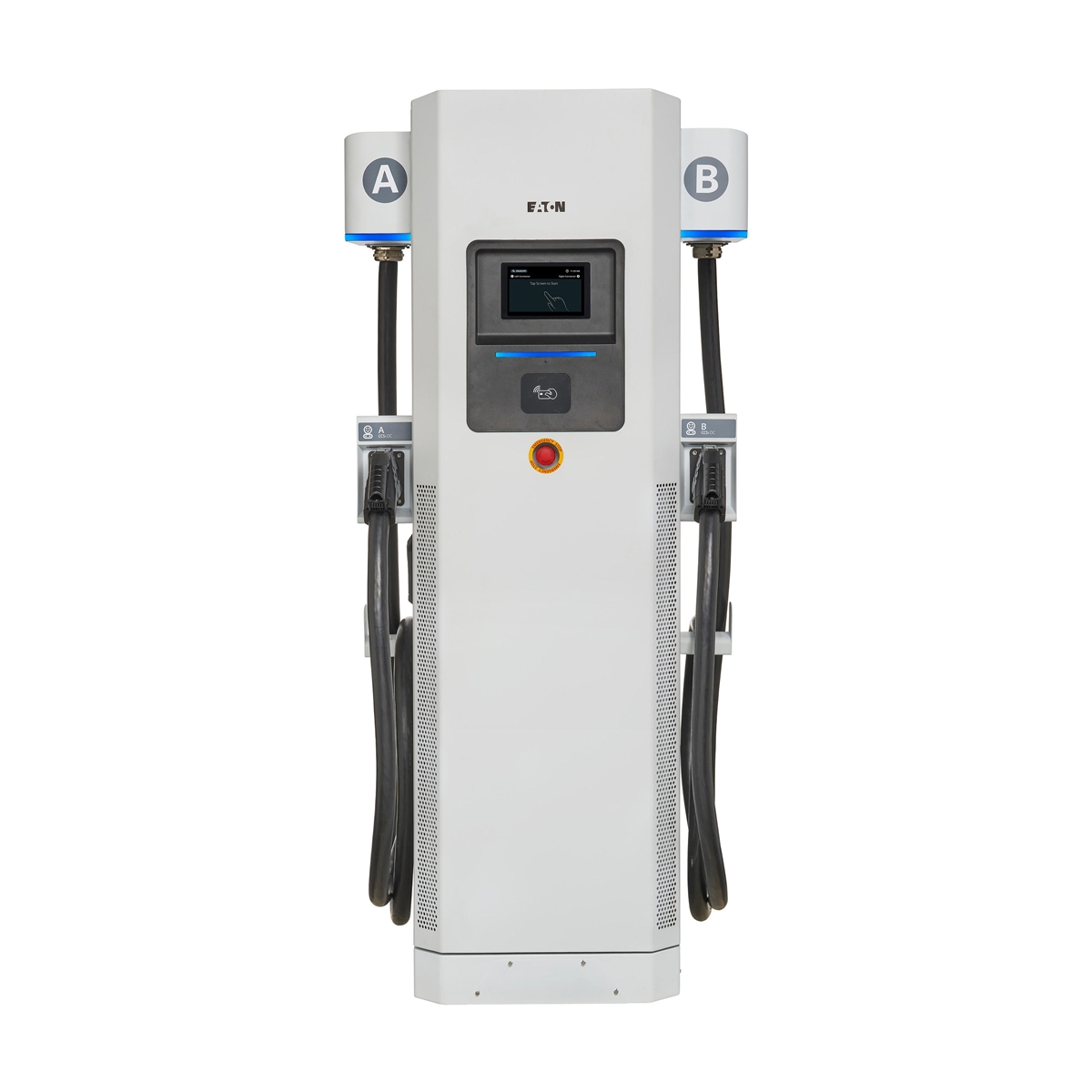

Green Motion DC EV Chargers
50–150 kW
High-power fleet depot and industrial charging
• Green Motion 50–150 kW DC EV Chargers are the ideal solution for private fleet owners and facility managers in need of quick, reliable charging
• Each Green Motion DC EV Charger comes equipped with one or two CCS1 cables (up to 300 A); the charger provides full power to one connector and dynamically adjusts when both are used simultaneously
• Compact footprint provides installation flexibility in locations not designed with electric vehicles in mind
• Mission-critical support from Eaton service technicians ensures reliability and supports 98% uptime SLA
- General
Product contents - EV Charger x1, CCS1 charging cable 300A x2
Elec Input
AC Input voltage - 3Ø 480 +10%/-15%
Input amp(s) - 160
No. of phases - 3
AC input frequency - 50/60 Hz
AC frequency range - ±10%
AC input protection qty./type/rating - NFB EATON/NZMH2-A160-NA 3P 200 A 480 VAC IC:100 KA
AC input connection type (line cord/hard wire/etc) - 3-phase grounded Wye, 3-wire + PE
Input Current T.H.D. (At Full Load) - ≤ 5%
Input current THD (at half load) - ≤ 10%
Inrush current (A) when input circuit breaker is closed - 268A, 45.8μs
Inrush current (A) when AC contractor is closed - 116A, 365μs
Input power Factor at full load - 0.98
Input power factor at half load - 0.95
Input voltage swell - 120% for 5 cycles
Elec Output
DC output voltage - 200 to 1000 VDC
DC output amps - 10 to 312.5 A
Output power rating - 125 kW
Metering - +/- 2.5% accurate metering
Connector cooling method - Air-cool
Short circuit protection Y/N (with details) - Y, SCCR=100 kA
Simultaneous charges - 2
DC charger power output - 125 kW
Single connector current limit - CCS1: 300 A
Operation
Efficiency (full load) - > 94%
Efficiency (half load) - ≥ 92%
Bidirectional - No
Surge protection (joules) - IEEE C62.41 Category B3/C1
Remote upgrade - Yes, OTA
Indicators and switches
Switch functions (number and desc) - 1 E-stop
LCD display - 7" touch screen display
LCD display languages - English, Spanish, French
Alarms/faults (function) - Charging status indicator
Status indicator - LED status bar One below LCD and one above each connector. Breathing effect with charging.
Communication
Charging protocol - CCS (see ‘Other certifications’ for protocol standards)
Communication protocol - OCPP1.6J
User Interface and Control
User access control - RFID, QR code
Network interface - Ethernet; cellular (4G LTE: AT&T, T-Mobile, Verizon)
User interface - Charging status Indicator, 7" touch screen display
Environment
Audible noise - <70dB @1m
Humidity - 0 to 95% relative humidity, non-condensing
Storage temperature - -40 to +70 °C
Operating temperature - -35 to +50 °C 55 °C with derating
Operating elevation - Up to 2000m
Conformal coating - Yes
Physical Info
Unit height mm - 1823
Unit width mm - 834
Unit depth mm - 780
Unit weight kgs - 403
Output cable length (ft) (measured at exiting from enclosure) - CCS1: 24.6' (7.5m)
Mounting options - Floor mount with concrete anchor points
Agency
Approving agency - UL
Safety standards (U.S.) - UL 2202, UL 2231-1, UL 2231-2
FCC/ICES compliant - CLASS A; 47 CFR FCC PART 15 SUBPART B:2018; ICES-003:2016
EMI/EMC standards - UL 2231-2
Energy Star compliant (Y/N) - Y
Salt spray - IEC 60068-2-11
Ingress protection - IP54, NEMA-3R
Seismic rating - AC156 or equivalent
Packaging vibration/drop/shock - ISTA-3B
RoHS - Yes
TAA compliant - Yes
Other certifications - Eaton Cybersecurity Standard, ISO/IEC 15118 (“Plug and Charge” portion only), DIN 70121 (SAE J2847/2), DIN 70122 (Conformance Tests to DIN 70121, no certification) SAE J1772 OCPP1.6J subset certificate OCPP1.6J security certificate
|
|
|
 |
|
 |
|
