TE Connectivity OEM Replacement Cable w/J1772 Connector - 25'
EV Replacement Cord

Alternative Views:


Availability: Usually ships same or next day
Product Code: 2267221-4
Currently Out of Stock

Description

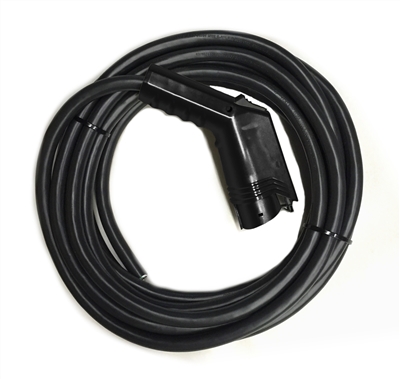

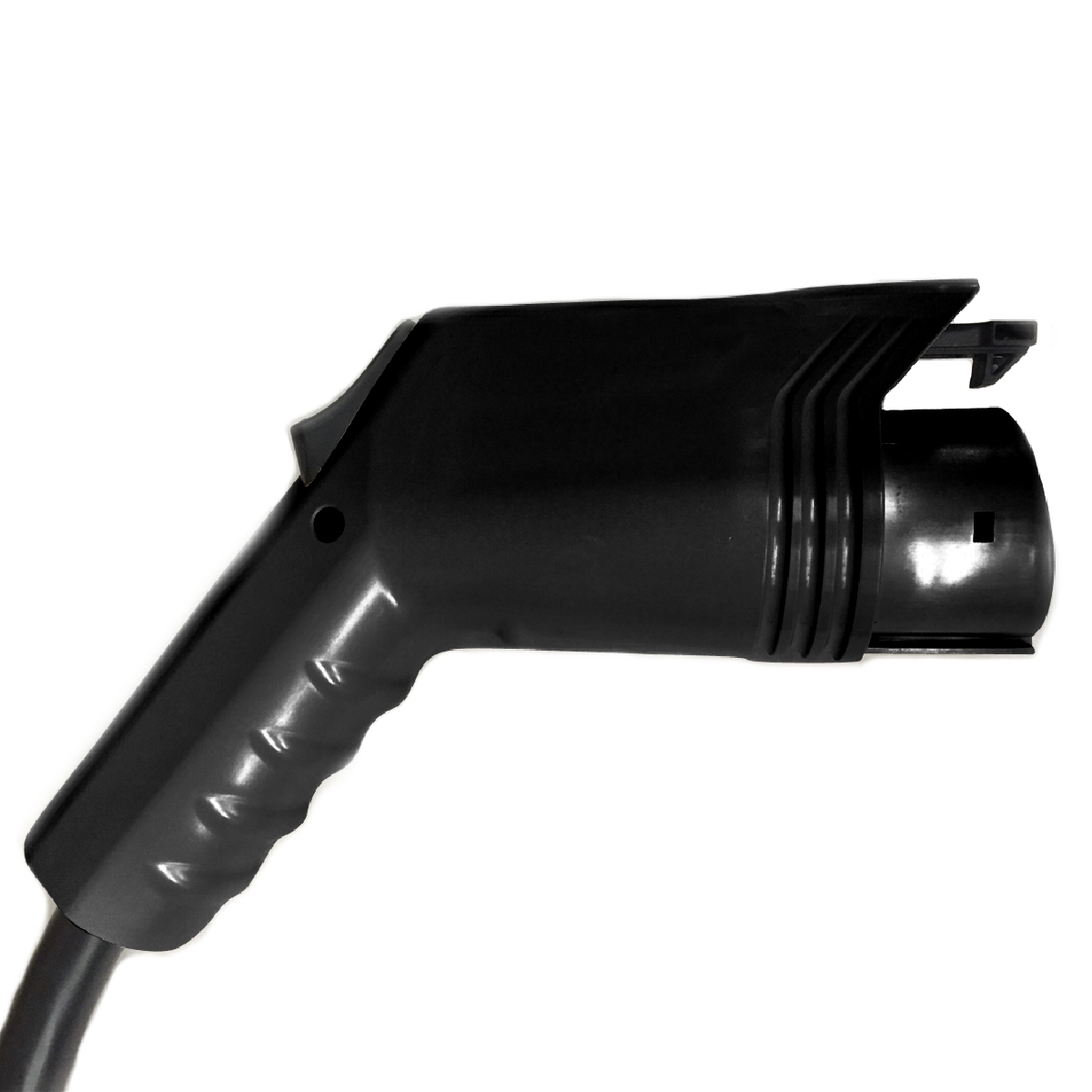

Black handle - 25ft cable with SAE J1772 charge plug

OEM Replacement charging station cable from TE Connectivity, the supplier for GE and Schneider Electric charging stations. Cord stays flexible in cold winter temps.

Technical Parameters:
  • Current: 32A Voltage: 240 VAC
  • Ingress Protection: IP66
  • Static Resistance: (from prox. detection to ground) 150ohm (resistance will increase to 480ohm when latch is depressed)
  • Connector Housing: UL94 V-0 Rated Thermosplastic
  • Latch: Thermoplastic

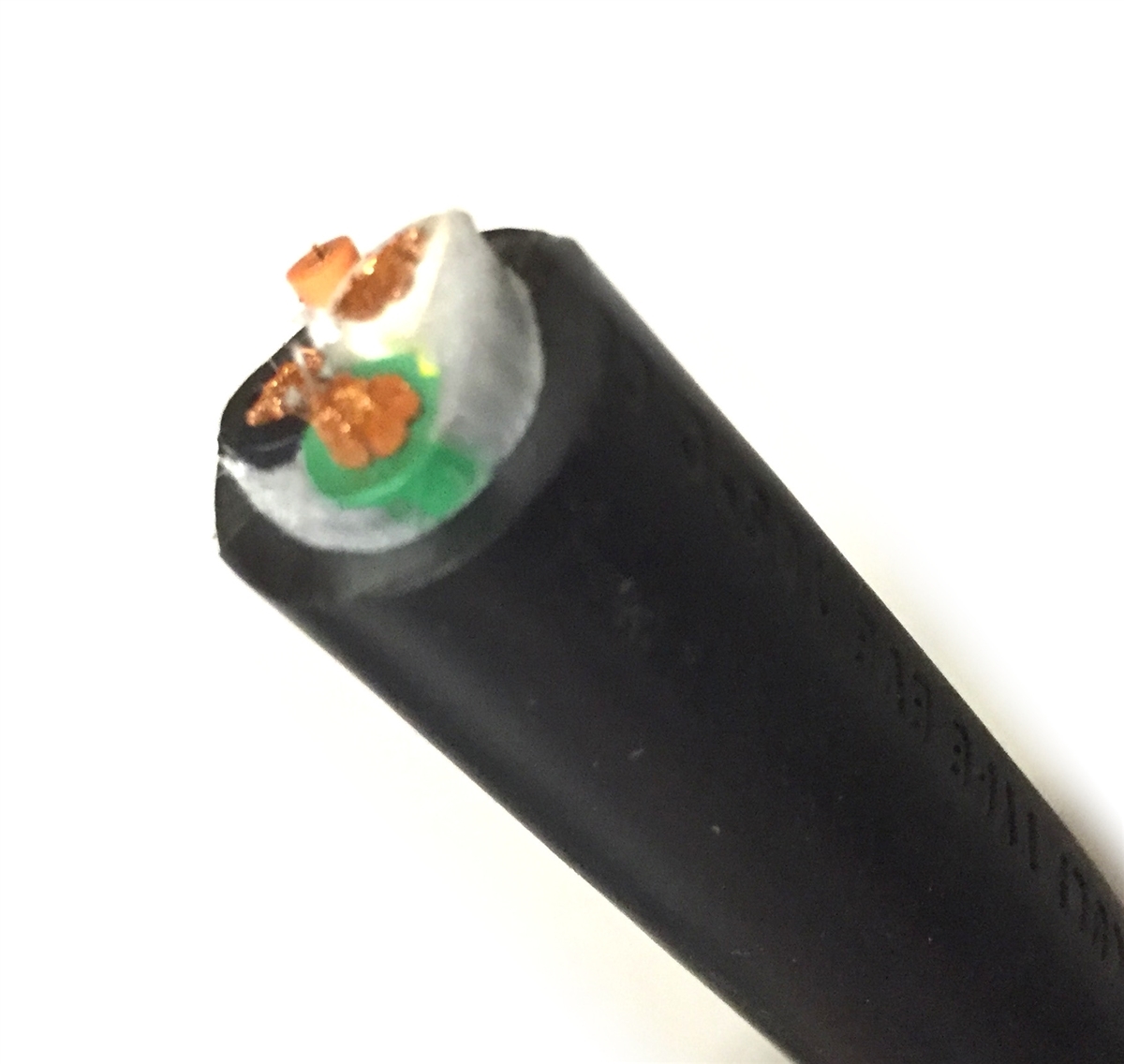

  • Cable Jacket: Thermoplastic elastometer
  • Cable Conductors: Copper alloy
  • Connector Contacts: Brass alloy
