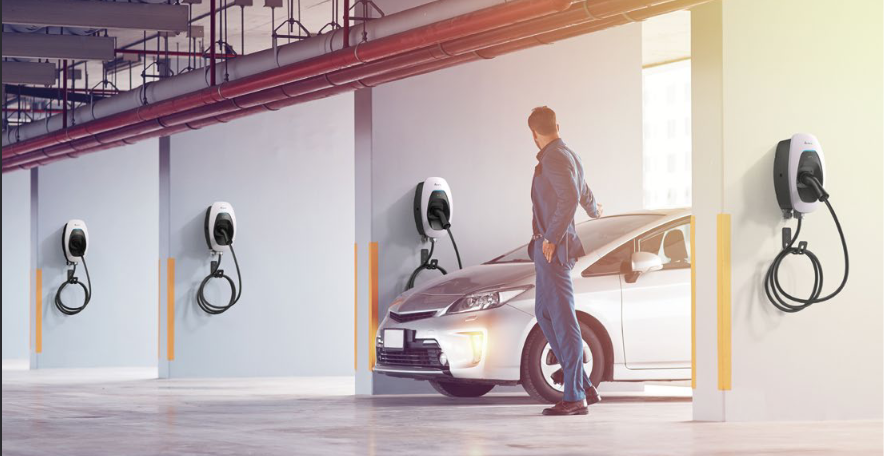

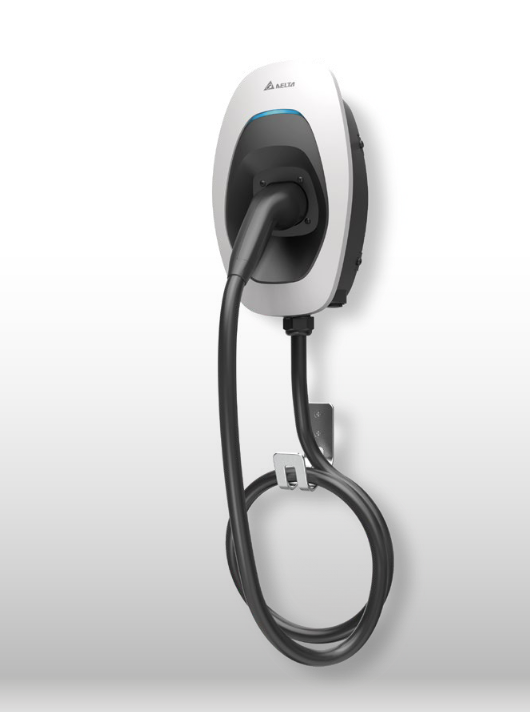

AC MAX Basic enables 3-phase charging up to 22 kW. The maximum charging power can be easily set to the available power capacity by adjusting the internal DIP-switches. With its compact, IP55 and IK09 rated design AC MAX Basic is the perfect solution for indoor and outdoor installations. The integrated key switch provides robust and easy-to-use access control system.The plug and play design reduces installation and commissioning time. By supporting Over-the-Air (OTA) firmware update via Bluetooth, AC MAX Basic is the future-proof charging solution for residential applications.
- Power Input
Nominal Current - 16A
Grid Connection - Single-phase electric power (L1, N, PE), Three-phase electric power (L1, L2, L3, N, PE), All AC MAX BASIC models support both single phase and three phase installations
AC Voltage - 230V / 400V
Frequency - 50Hz / 60Hz
Grounding Systems - TN, TT, IT
Terminal - Terminal block
Protection - Over current, Under voltage, Over voltage, Over temperature, Surge protection Short circuit, Ground fault
Standby Power - 3.6W
Charging Output
Nominal Power - Single-phase: 3.7kW, Three-phase: 11kW
Nominal Current - 16A per phase
Connector Type - AC Type 2 Plug
Charging Voltage - 230V / 400V
Cable Length - 5m (models with AC Type 2 Plug charging interface)
Protection - RCD Type A (AC 30 mA), RDC-DD (DC 6 mA)
Compliance - IEC 61851-1, IEC 62196-2, IEC61008-1, IEC 62955
User Interface
Display - Status LED, 4 colors

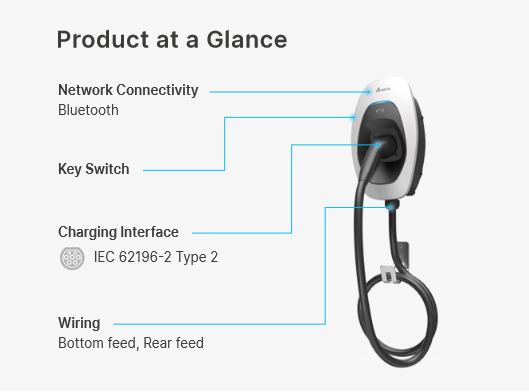

Authentication - Key switch
Charger Configuration - Maximum charging current selectable by 8-step hardwar DIP switch
Network Interface

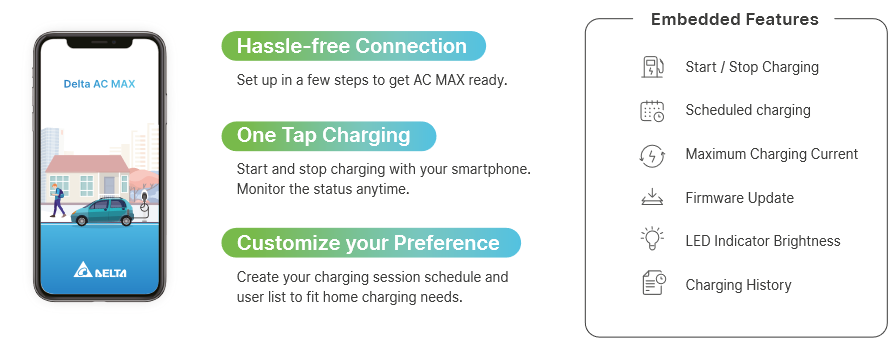

Bluetooth - Configuration, control, monitoring, and firmware update
Protocols and Applications - ModBus RTU for energy management
Mechanical Properties
Ingress Protection (IEC 60529) - IP55
Impact Protection (IEC 62262) - IK09
Cooling - Natural convection
Dimensions* (W x H x D) - 218 × 371 × 167 mm ( 8.6 × 14.6 × 6.6 inch)
Weight - 6.0 kg (13.3 lbs), including charging cable (Depends on configuration)
Environmental Conditions
Operating Temperature Range - -30 ºC to + 50 ºC (- 22 ºF to + 122 ºF)
Storage Temperature Range - -40 ºC to + 80 ºC (- 40 ºF to + 176 ºF)
Humidity - < 95 % relative humidity, non-condensing
Altitude - Up to 2,000 m (6,500 ft.)
Compliance
EU Low Voltage Directive - IEC 61851-1, IEC 62479
EU EMI Directive - EN 61000-3-11 / -12, IEC 61851-21-2
|
|
|
 |
|
 |
|
