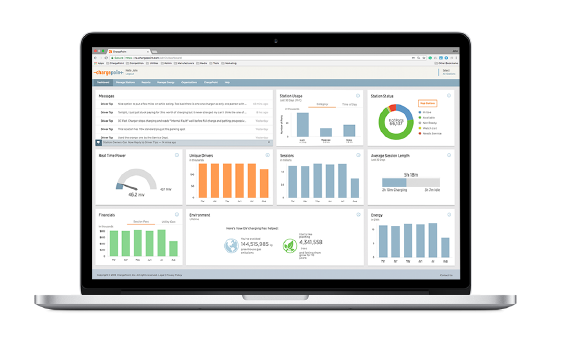

Seamlessly integrating charging management software, station
hardware, driver interface and customer support, the CP6000 Series
offers complete charging control, flexibility and reliability with a
superior driver experience. The CP6000 prepares businesses for the future of electric mobility,
offering complete control, reliability and a user experience that keeps
drivers and owners happy. The CP6000 makes it easy to meet the evolving
charging needs of today and tomorrow. Intuitive software and robust
hardware maximize charging utilization and operational efficiency.
Flexible controls, power management tools and extensive network coverage
make it simple to get started, make changes and scale for growth.

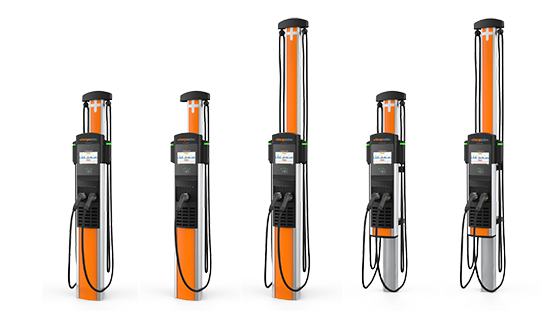

- Mounting
Pedestal, Wall
Number of ports
Single, Dual
Cable Length
18' (5.5m), 23' (7 m)
Connector/Port Type
SAE J1772
Electrical Output
Up to 12kW or 19.2kW per port
Connectivity
Cellular 4G LTW
Authentication and payment
RFID, tap-to-charge (NFC), remote via mobile app or in-vehicle, contactless credit card
Display
Full color 8-inch interactive display with full motion video, UV protection, gesture touch controls, and multi-language support
Network protocol
OCPP 2.0.1, ISO 15118 (supported by hardware)
Operating temperature
-40°F to 122°F (-25°C to 50°C)
Station enclosure
Type 3R per UL 50E
Safety and compliance
UL and C-UL listed; complies with UL 2594, UL 2231 and NEC Article 625
Certifications
ENERGY STAR® certified, California Type Evaluation Program (CTEP), National Type Evaluation Program (NTEP)
|
|
|
 |
|
 |
|
