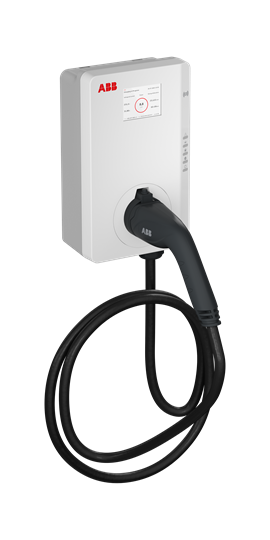

The UL certified Terra AC Wallbox is a compact 22 kW AC fast charger perfect for offices, parking facilities, shopping areas and car dealerships. With its low-power and high-voltage
configuration, the Terra AC Wallbox can be installed at sites with defined or limited available power service, all while serving vehicles of today and in the future.
- Product Information
AC input / output power and current - 19.2kW / 80A
Recommended breaker: 100A (for 80A unit)
Input / output voltage - 240VAC 60Hz
Network Type - Split phase
Cable type / Cable storage - SAE J1772, type 1 cable, 7.6 m (25ft). Cable is wrapped around charger and front holster inlet
Protection - Overcurrent, undervoltage, overvoltage, CCID20, integrated surge protection
Overvoltage category - III
Energy metering - Revenue grade energy meter Class B (±2%)
Mobile communication with nano SIM socket - 4G, LTE, WCDMA
Available configurable contacts - 1 input, 1 output
User Interface
Connectivity - Ethernet (RJ45) with daisy-chain Ethernet option, Wifi, Bluetooth, Modbus RTU RS485, Modbus TCP/IP, 4G
User authentication - ABB RFID card (1 card included) or ChargerSync
User interface / Installer interface - ChargerSyncTM app or portal / TerraConfig app and portal for setup
Communication protocols - OCPP 1.6J, Modbus RTU RS485 (energy meter or local controller
connection), Modbus TCP/IP (local controller connection)
Status indication - 5 LED’s (power / connectivity / authorization / charging / error)
Configuration
Software update - OCPP 1.6J, ChargerSyncTM portal or app, Terraconfig app
Control and configuration - OCPP 1.6J, ChargerSyncTM portal or app, Terraconfig app, display
wakeup functionality via touch, current limit by rotary switch
General Characteristics
Enclosure rating - Indoor and Outdoor, NEMA 4; IP65, IK10
Operating altitude (max) - 4000 m (13,123 ft)
Operating temperature range - -30 °C to +55 °C (-22 °F to +131 °F); derating may apply
Storage temperature range - -40 °C to +85 °C (-40 °F to +185 °F)
Mounting - Wall or floor using a pedestal
Dimensions H × W × D - 400 × 230 × 125 mm (15.75 × 9.06 × 4.92 inches)
Weight - 11.8 kg (26.01 lbs)
|
|
|
