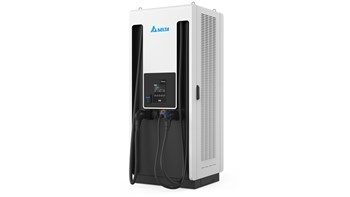

Revolutionize EV Charging with Delta's UFC 200 fast charger
Delta's
UFC 200 platform offers the convenience of a single charging station
with the flexibility to charge up to four vehicles simultaneously. Two
charging points are available for DC fast charging up to 200 kW and two
charging points for AC charging with 22 kW each. Thanks to the
integrated power management, the available power can be optimised, the
charging times of the vehicles can be reduced and the maximum currents
at the grid connection point can be secured at all times.
For larger DC charging parks, additional variants and configurations are possible to
optimize operation or to implement different traffic and parking concepts.
- Input
AC Connection - 3-Phase, L1, L2, L3, N, PE
AC Voltage - 400 V RMS (L- L) ± 10 %
Frequency - 50 / 60 Hz
Nominal Current - 380 A RMS at maximum power (200 kW DC + 44 kW AC)
Power Factor / THDu - 0.99 / 1.5 %
Mains Terminal - Terminal blocks
Transient OVP - Class II / C protection
Output
DC Output Voltage Range - 200 V to 920 V DC
Maximum Current - 500 A DC at 400 V DC / 250 A DC at 800 V DC
Maximum PoweCable Length / Reach Distancer - 200 kW DC
Protection
Protection - Over current, Under voltage, Over voltage, Residual current, Surge protection, Short circuit, Over temperature, Ground fault
User Interface & Control

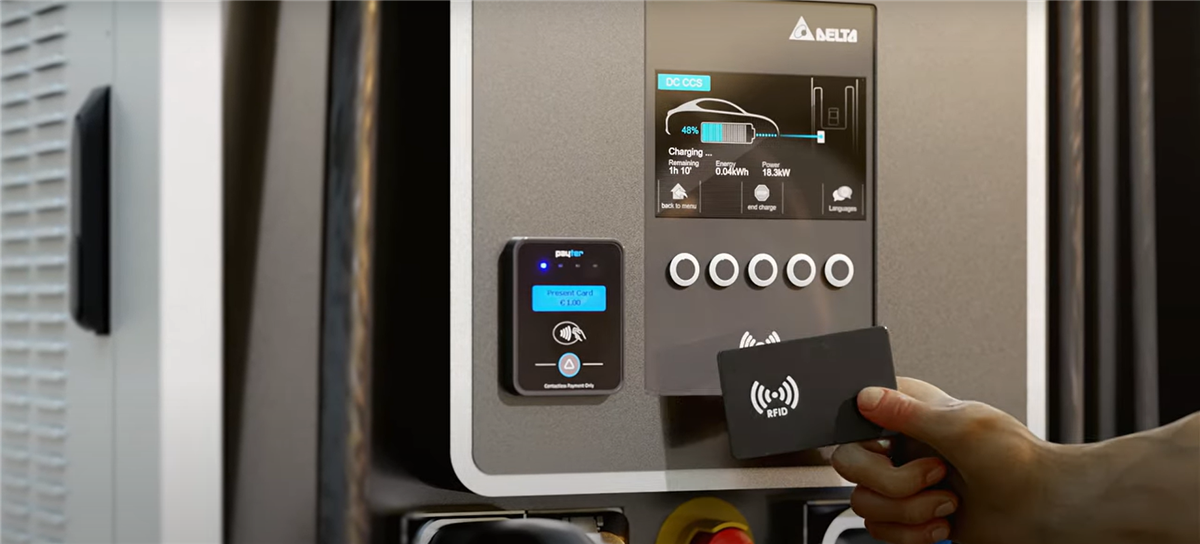

Display - 15 inch LCD panel
Support Language - English (Other languages available upon request)
Push Buttons - 4 Buttons for HMI
User Authentication - ISO/IEC 14443A/B, NFC
Charge option - Simultaneous charging with equal distrubutions charging
Communication
Network Interface - Ethernet, Cellular (Option)
Protocol - OCPP v1.6J, upgradable to OCPP v2.0.1
Environmental
Operating Temperature - Operating at 22F to + 122F (-30C to +50C); Derating: < -5C or >+45C
Storage Temperature - -40F to +176F (-40C to +80C)
Humidity - < 95% relative humidity, non-condensing
Altitude - 6,500 ft (2,000m)
Mechanical
Ingress Protection - IP55 / NEMA 3R
Enclosure Protection - IK10
Cooling - Forced Air

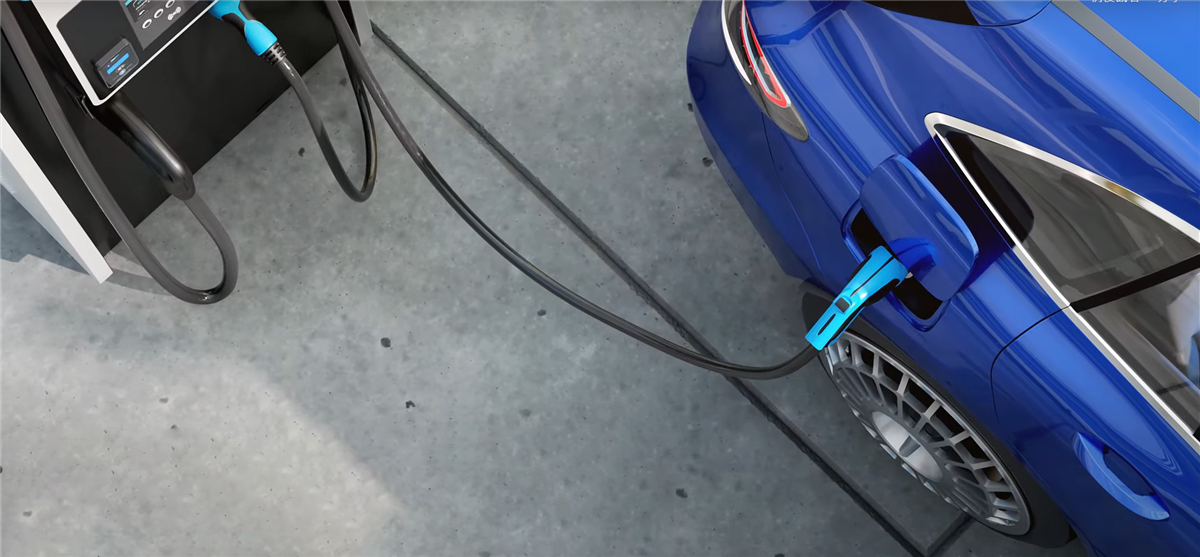

Charging Cable Length - 14.76ft (4.5m)
Dimension (W x H x D) - 42.5× 78.7× 19.1inch (1080 × 2000× 485 mm)
Weight - 706 lb (320 kg)
Regulation
Safety - IEC 61851-1, IEC 61851-23, IEC 62479-1/-7
EMC - EN 55011, IEC 61851-21-2
German Eichrecht - Fully Compliant
Accessibility - DIN 18040
DC Charging Points - CCS
Rating cable and connector - 400A DC
Compliance - Prepared for ISO 15118-2
DC Charging Points - CHAdeMO
Rating cable and connector - 125 A DC / 500 V DC
Compliance - IEC 61851-23 / -24, JEVS G 105, Rev. 1.2 compliant
AC Charging Point
Nominal AC Voltage - 400 V RMS
Type 2 AC Plug / Connector - 3 × 32 A RMS at 22 kW
Protections - RCD Type A 30 mA+ 6 mA DC leakage current detection, compliant to IEC 62955
Compliance AC connetor & socket - IEC 62196-2 Mode 3, Type 2
|
|
|
 |
|
 |
|
